With its sleek, cubist design the RAIS Q-Tee 2 Gas Stove fireplace has cool, understated elegance with a distinct urban twist. This kit includes a flue system so you’re ready to install!

Description

This stove is based on the popular woodburning stove from Rais, the Q-Tee 2, but comes with the convenience of running on natural gas; and with a remote control too.

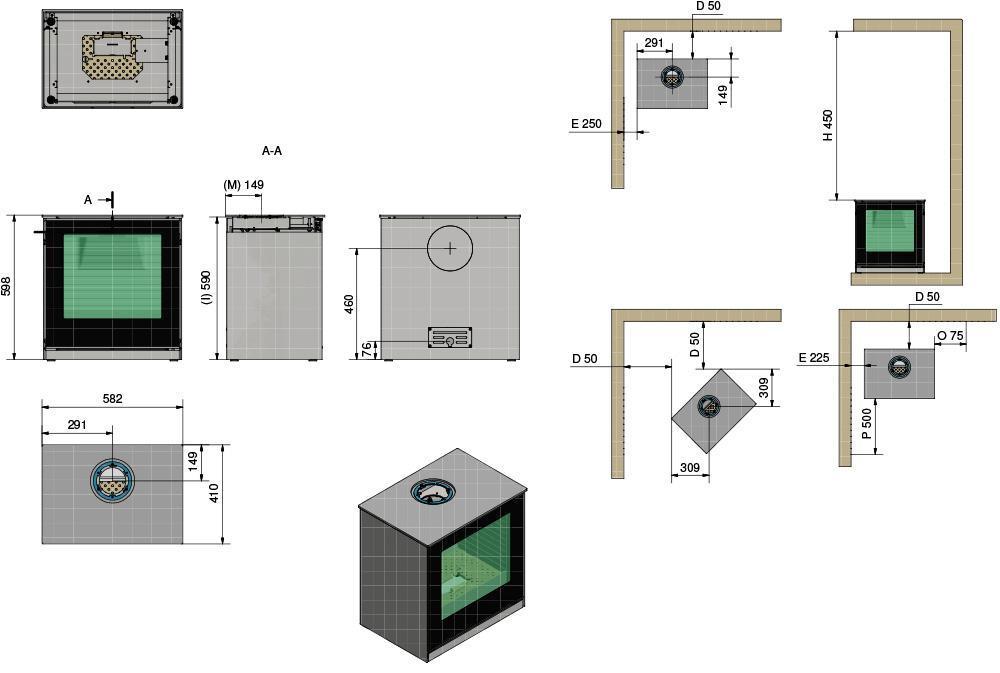

Technical Specifications:
    • Dimensions (W-D-H)
    • External dimensions (W-D-H) in mm: 582 – 410 – 598/975 mm
    • Combustion chamber inner dimensions (W-D-H) in mm: 446 – 277 – 265 mm
    • Outer frame dimensions (W-D-H) in mm: 100/150 mm
    • Distance from centre to the back edge of the top plate in mm: 131 mm
    • Distance from floor to the centre of the AirSystem connection: 105/490 mm
    • Distance from floor to the centre of the flue outlet, top: 590/975 mm
    • Distance from floor to the centre of the flue outlet, back: 470/755 mm
    • Output
    • Nominal heat input (kW): Natural Gas – G20 I2H/I2E: 8.2
    • Min. input (kW): Natural Gas – G20 I2H/I2E: 1.7
    • Nominal heat input (kW): Propane Gas – G30/G31 I3B/P(30): 7.2
    • Min. input (kW): Propane Gas – G30/G31 I3B/P(30): 1.8-8
    • Efficiency in %:91
    • Distance to flammable material
    • To back wall in mm: 50 mm
    • To the ceiling in mm: 450 mm
    • To the side in mm: 250 mm
    • 12 6541





Instructions:

Rais Qtee 2 Gas Instructions and Installation Guide.
